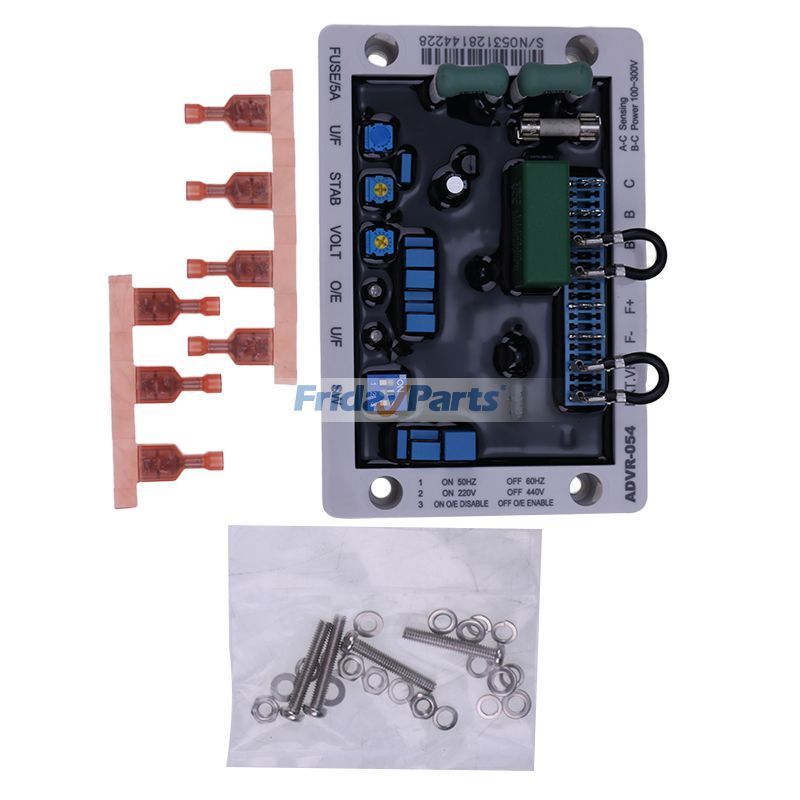

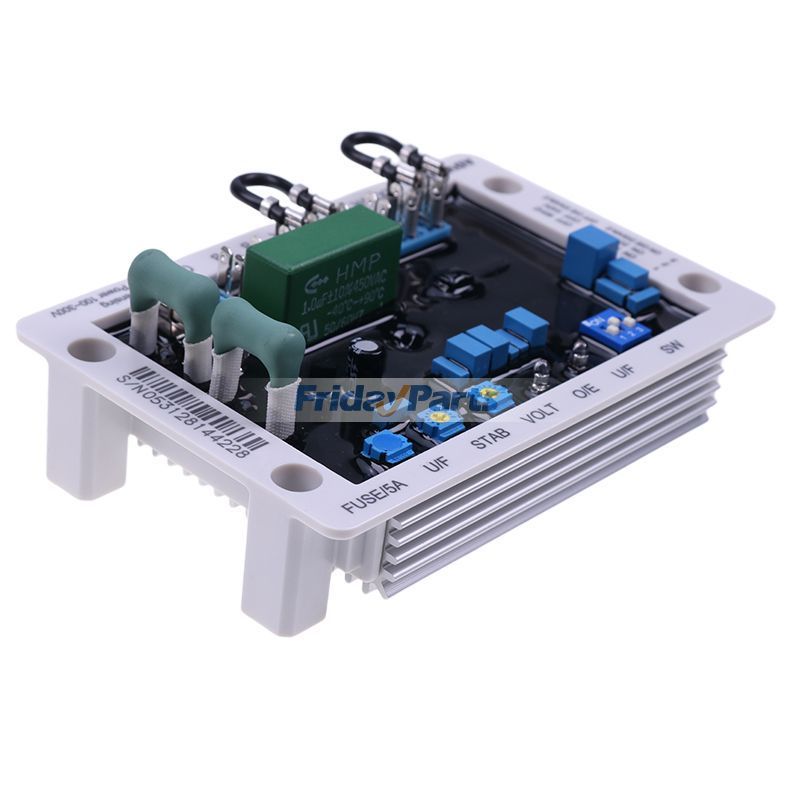

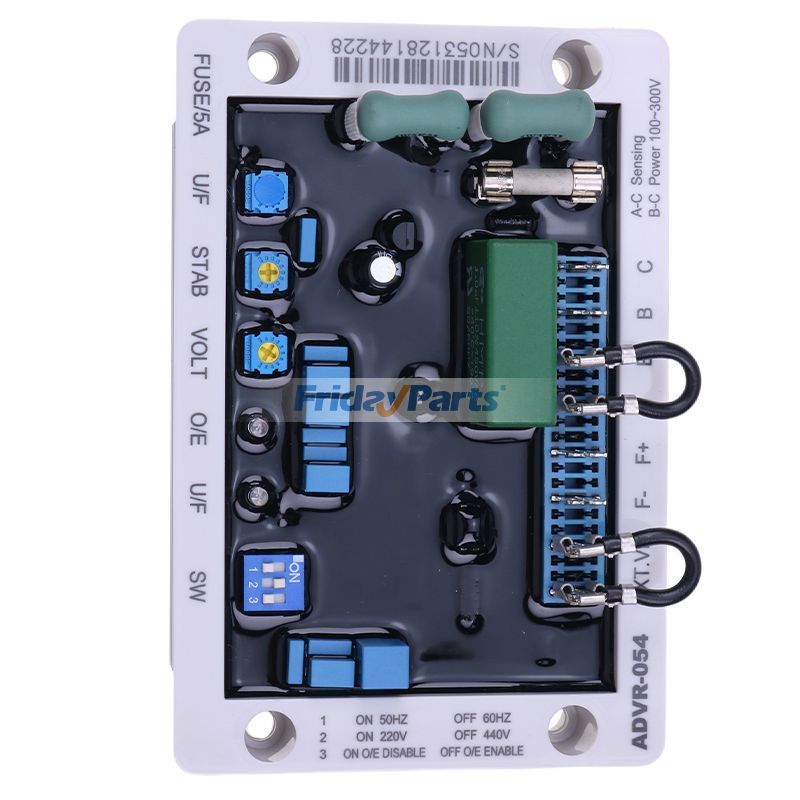

Orignal Self Excited 5Amp Automatic Voltage Regulator ADVR-054
SKU: LXFP210308HC10010552
$259.90
Add to wishlist Add to compareProduct information
| Brand: | Zonparts |
|---|---|
| Replacement Part Number: | ADVR-054, ADVR054 |
Description

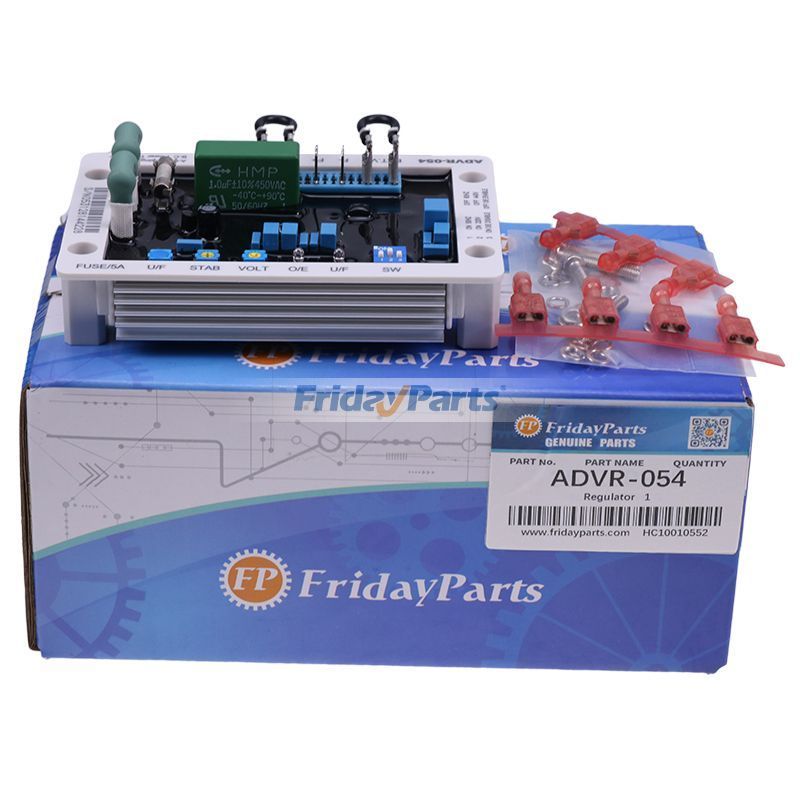

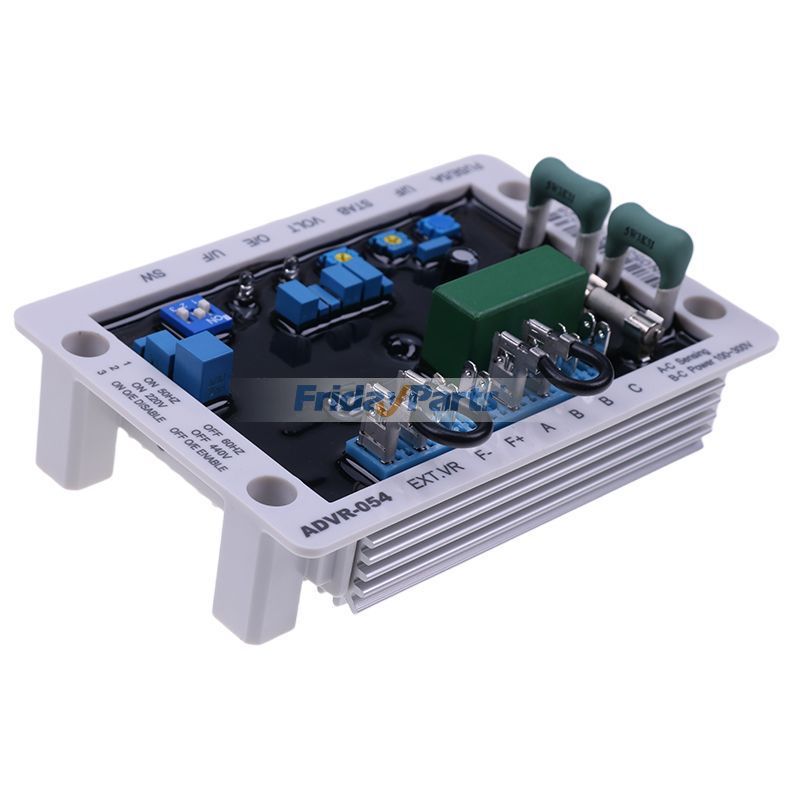

- Orignal Self Excited 5Amp Automatic Voltage Regulator ADVR-054
- Part Number:ADVR-054, ADVR054
- Condition:New OrignalNote:Original Parts do not provide return or exchange service.

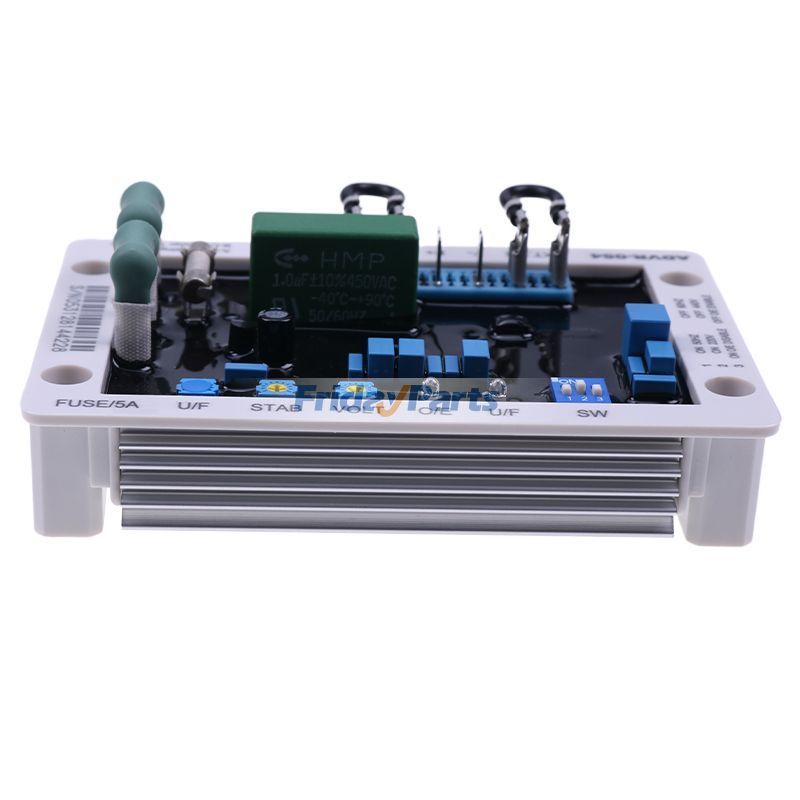

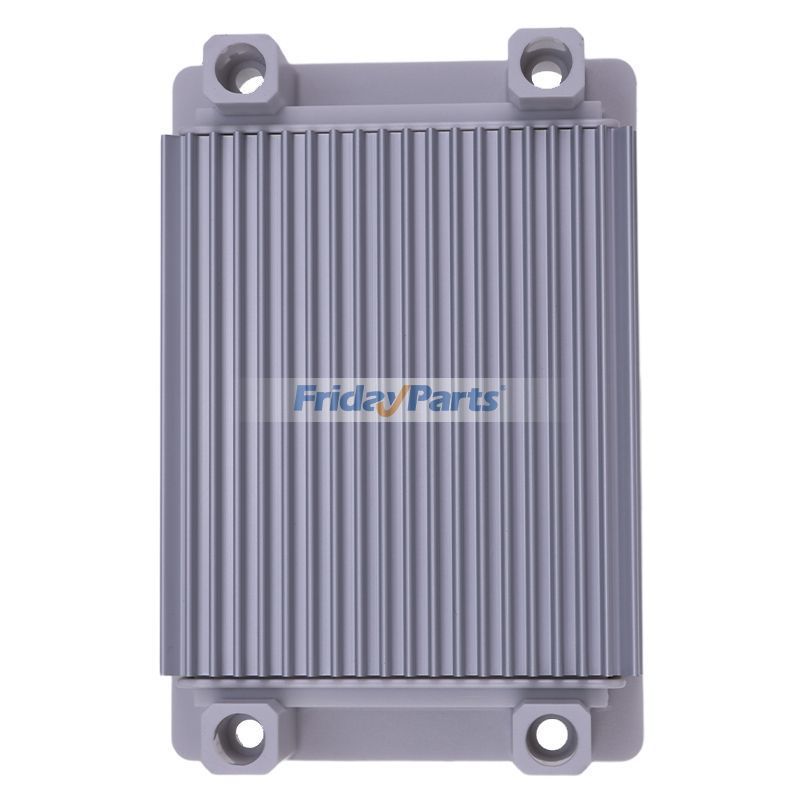

- Description:ADVR-054 has large heat sink which significantly increases cooling efficiency. This AVR has over excitation protection and it can automatically shut-off output when voltage sensing is lost. Compatible replacement for Basler KR7, Airman DST-100-2, Markon 36245, Markon MD1C, Sincro BL4,Datakom AVR-4.
- Specifications:Sensing Input(Average Reading):Voltage 170 to 260 Vac @ 220 Vac 1 phase 2 wireVoltage 340 to 520 Vac @ 440 Vac 1 phase 2 wire 220/440 Vac (DIP switch setting)Frequency 50/60 Hz (DIP switch setting)Power Input:Voltage 100 to 300 Vac 1 phase 2 wireFrequency 40 to 60 HzExcitation Output:220 Vac 1 phase continuous 63 Vdc 5A Max. 90 Vdc 7A for 10 secondsResistance Min. 15 ohmsMax. 100 ohmsExternal Voltage Adjustment:Max +/-3.5% @ 1K ohm 1 watt potentiometerVoltage Regulation:Less than +/-0.5% (with 4% engine governing)Build Up Voltage:5Vac 25Hz residual volts at power input terminalSoft Start Ramp Time:3 seconds +/-10%EMI Suppression:Internal electromagnetic interference filteringStatic Power Dissipation:Max. 8 wattsUnder Frequency Protection (Factory Presets):50 Hz system presets knee point at 45 Hz60 Hz system presets knee point at 55 HzOver Excitation Protection:78 Vdc +/-6% @ 220 Vac Time delay 5 secondsFunction can be turn offVoltage Thermal Drift:Less than 3% at temperature range -40 to +70 ??CUnder-Frequency Knee Point Thermal Drift:Less than +/-0.1 Hz at -40 to +70 ??C
- Environment:Operating Temperature:-40 to +60 ??CStorage Temperature:-40 to +85 ??CRelative Humidity:Max. 95%Vibration:5.0 Gs @ 60 Hz
- Physical Specifications:Dimension:121.0 (L) x 81.0 (W) x 44.5 (H) mm4.76 (L) x 3.19 (W) x 1.75 (H) inchWeight:270 g +/-2%0.6 lb +/-2%
