Product information
| Brand: | Zonparts |
|---|---|
| Compatible Model Brand: | For OTHER BRAND |
| Replacement Part Number: | BAC 06 12V, BAC-06 12V, BAC-06A, BAC06A 12V |
Description

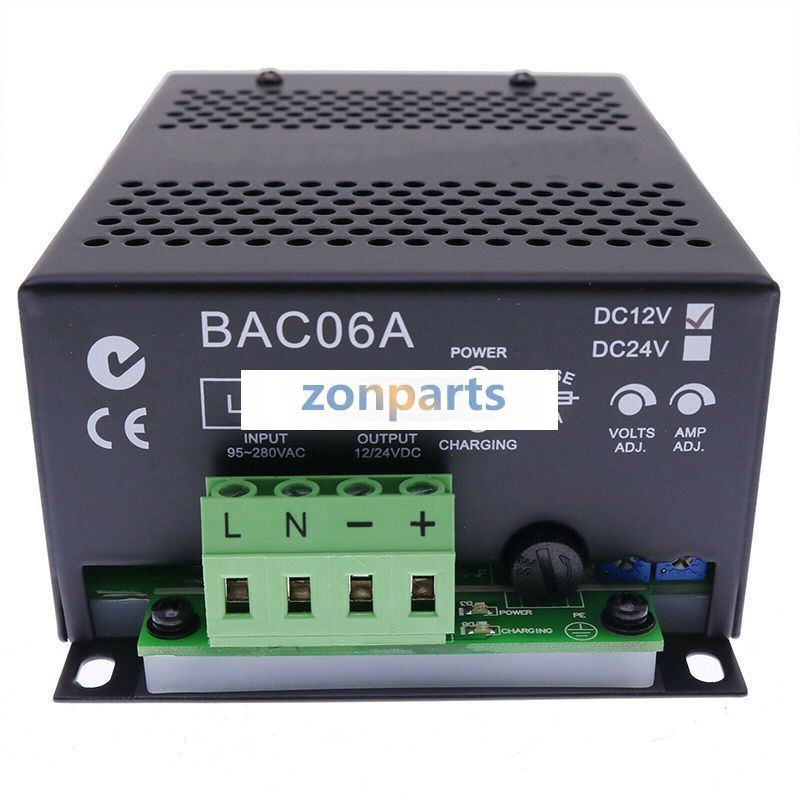

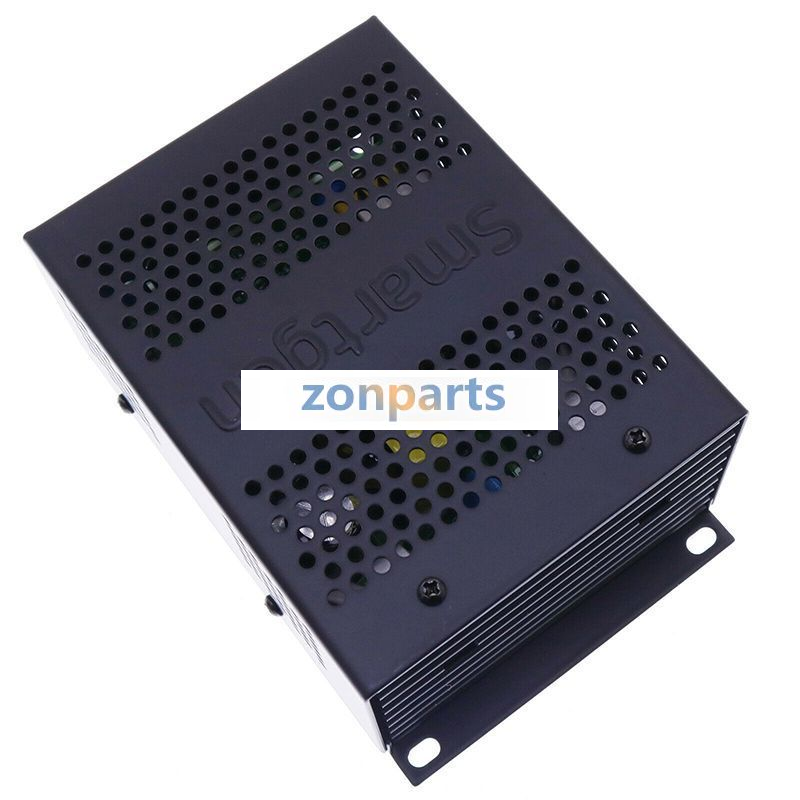

- 12V Battery Charger BAC06A Controller for Samartgen Generator
- Induction:BAC06A switching battery charger adopts the latest switch power components, which is designed for charging lead-acid starting battery according to its property. The charger is suitable for lead-acid battery float charge. The maximum charge current for 12V charger is 6A; the maximum charge current for 24V charger is 3A.
- Feature:1.Designed in switching power structure, wide range of AC voltage input, small volume, light weight and high efficiency;2.Two-stage charging method (constant current firstly and then constant voltage), fully considering charging property of the lead-acid battery, can avoid overcharging and extent extend the battery life to the fullest;3.With short circuit and reverse connection protection;4.Charging voltage and current can be adjusted via potentiometer on the spot;5.Suitable for 12V and 24V batteries, corresponding types are BAC06A-12V and BAC06A-24V;6.LED display: Power indication and charging indication;
- Specification:Battery Voltage:12VMax. Charge Current:6A/3ACharge Voltage Range:(13~14.5)V/(26~29)VCharge Current Range:(3~7)A/(1.5~3.5)AACVoltage:(95~280)VACACFrequency :50 Hz/60HzPower Consumption:120W/115WNo-Load Power Consumption :Less than 3WEfficiency More than 80% :More than 85%Working Temperature:(-40~60)??CStorage Temperature:(-40~85)??C
